HUD, Menu, and Shop Regression Testing for Mobile Games

Every mobile game ships design refreshes on a weekly or biweekly cadence. And every design refresh breaks something in one of same three places: HUD, menus, or shop. QA teams know this pattern well enough that most studios have a running joke about it, but joke exists precisely because three zones are hard to test automatically.

The reason is structural. All three zones render inside game's graphics canvas, not as native UI views. That is surface where Appium and other native automation frameworks go blind on games  they see one opaque view instead of individual buttons, tiles, or health bars.

This post covers what breaks at each of three zones, why they need a testing approach that reads rendered screen, and regression pattern most studios end up building. It sits alongside broader mobile game testing guide that maps six categories of testing stack.

The three UI zones every mobile game has

Every mobile game  regardless of engine, genre, or monetization model  has these three visual surfaces:

• HUD (heads-up display). The always-on overlay: health bar, timer, currency count, mini-map, damage indicators, quest tracker.
• Menus. Every non-gameplay screen: main menu, settings, inventory, character sheet, quest log, pause overlay, mission select.
• Shop. The storefront: product tiles, promotional banners, currency packs, battle pass, limited-time offers, bundle art.

These three cover roughly 60-70% of visual surface players interact with outside of active gameplay. They are also where largest concentration of shipped bugs lands, and where regression cost dominates a QA function's week.

Why native automation is blind to all three

Traditional mobile automation frameworks  Appium, Espresso, XCUITest  work by parsing accessibility tree exposed by operating system. On a normal mobile app, buttons, text fields, and labels show up as distinct elements in that tree. Each one is queryable by ID, XPath, or accessibility identifier.

Games do not work this way. Whether engine is Unity, Unreal, Cocos2d, or a proprietary in-house engine, game renders its entire UI to a single graphics surface. From accessibility tree's point of view, whole screen is one big rectangle.

The consequence is that a script trying to click "Buy" on a shop tile can't find button. The accessibility tree has no button at that position. There is only a canvas.

This is shape of problem Vision AI mobile testing was designed to solve  reading rendered screen way a player does rather than parsing what OS exposes.

The primitives that make selector-based automation possible on native apps  W3C target-size guideline, Google Material Design's layout foundations  simply don't reach into game canvas.

Zone 1: HUD (heads-up display)

The HUD is always-on overlay that surfaces gameplay state. It changes constantly during a match, updates every frame, and is one of highest-density visual surfaces in game.

What breaks after a UI change:

• Text truncation on damage numbers. A localisation update pushes German or Finnish translations that exceed label width, and number displays as 12345→ with an ellipsis.
• Health bar clipping on notch devices. The HUD was designed against reference device, and safe-area padding wasn't updated when design refresh moved bar. Apple's Human Interface Guidelines on layout document safe-area geometry every HUD design needs to respect.
• Currency count overflow. The UI reserves 5 characters for coin count, and a mid-game event pushes a player's balance past 99,999.
• Mini-map corner drift. A layout constraint change moves mini-map two pixels, and corner now clips into pause button hitbox.

The tests that catch these are visual comparisons across device matrix at multiple game states. Not a single screenshot at start  screenshots at combat start, at mid-combat, at low-health state, and at victory state. Anything less misses state-dependent breakage.

Zone 2: Menus

Menus are highest surface area in most games. A mid-sized mobile RPG can have 40 to 60 distinct menu screens, each with its own layout, its own state variants, and its own interaction surface.

What breaks after a UI change:

• Component drift across menu screens. A design system update to button component ships in three menus and not other 37, producing a mismatched-styling regression  exact class of change Vision AI handles without breaking existing tests.
• Scroll-position bugs on tall menus. The inventory scrolls past last item; character sheet doesn't scroll far enough to reach equipment slots.
• Modal and toast collisions. A confirmation modal now appears behind pause overlay because z-index changed with layout refactor.
• Back-navigation breakage. The back button on a nested menu returns to wrong parent screen after a navigation-stack change.

Menu regression is largest source of QA time in most studios. It's also where greatest testing leverage exists, because these screens are essentially static between builds and change only when design updates. That makes them a prime target for automated coverage  if automation can see menu contents at all.

Zone 3: Shop / storefront

The shop is where design refreshes carry highest revenue risk. Every visual bug on a shop tile is a bug on surface player transacts against, and failure modes are specifically ones players notice.

What breaks after a UI change:

• Stale prices after a remote config push. The server updates price of a bundle, but client is still rendering yesterday's price.
• LTO timer visual drift. The countdown formats remaining time as 00:00:07:03 instead of intended 7:03.
• Bundle art broken across regions. The Japanese-locale banner renders as a missing image because CDN's regional mirror hasn't propagated.
• Currency symbol positioning. The regional price shows €$0.99 because locale detected two currency symbols and rendered both.

Shop regression is closest of three zones to a monetization bug  every visual break here potentially costs revenue. The full four-layer story on IAP testing (including shop UI as Layer 1) is in in-app purchase testing for mobile games drill-down.

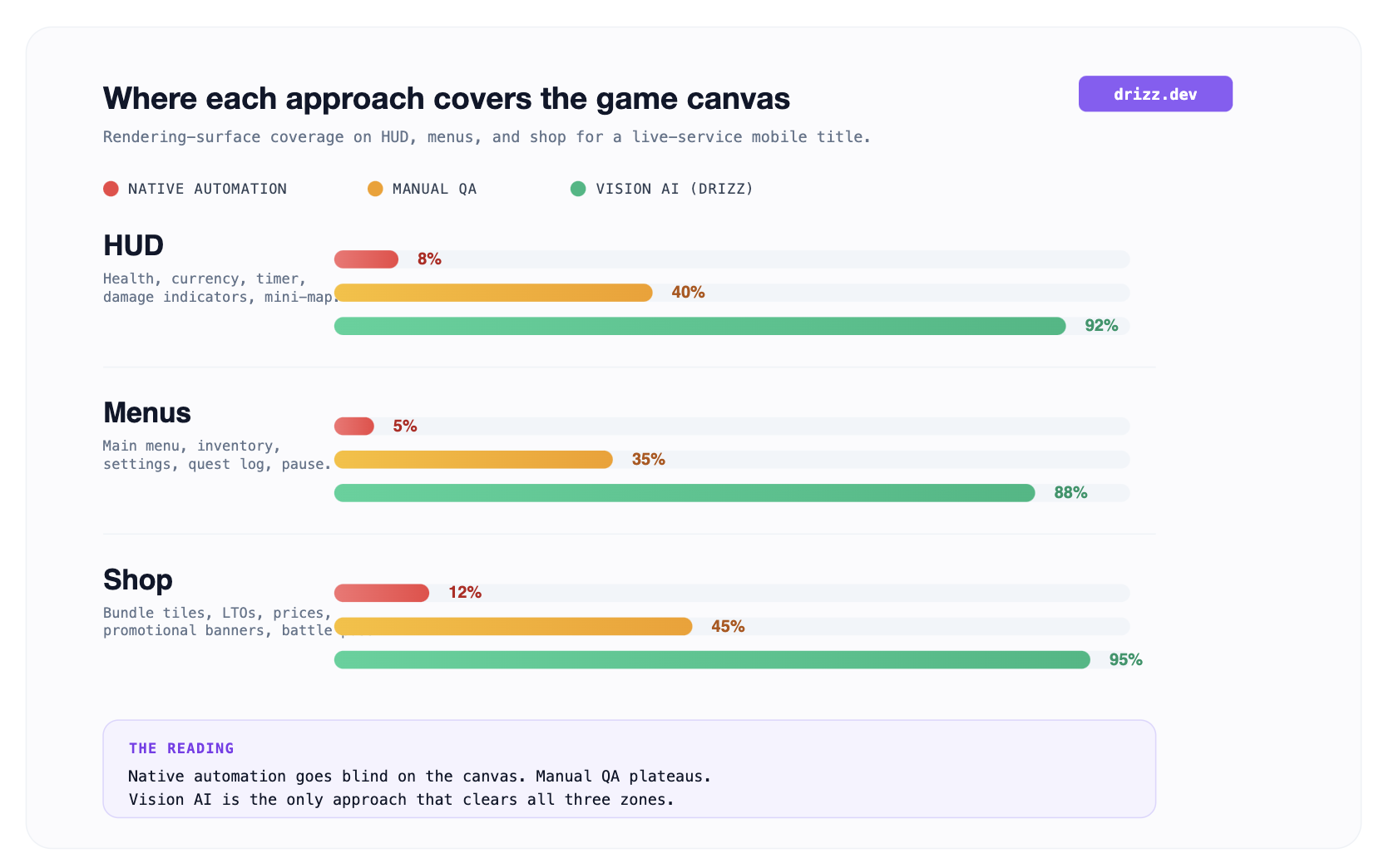

The coverage gap between what breaks and what gets tested

What this chart helps with: it shows why studios end up with weekly manual regression cycles even after buying automation. Native automation covers almost none of three zones. Manual QA covers a third of each and gets tired. Vision AI is only approach that covers all three zones at production cadence, which is reason it changes QA cost curve for game studios shipping live-ops.

The regression checklist for every game UI change

The pattern most game studios converge on is a per-release smoke test across all three zones. Twelve items, done in one pass:

• Every HUD element renders in portrait and landscape
• HUD elements do not overlap notch or safe-area boundaries on any target device
• Every top-level menu screen loads without layout shift or clipped elements
• Modal and toast screens render on top of correct parent screen
• Back-navigation returns to correct parent from every nested menu
• All shop tiles render bundle art, price, and promotional badge correctly
• Regional pricing displays correct currency and format for each target locale
• Limited-time offer timers count down correctly and hide after expiry
• Dark mode renders correctly across HUD, menus, and shop
• Accessibility large-text setting does not truncate HUD or menu labels
• Scroll positions restore correctly after backgrounding app
• All three zones survive a fast series of orientation flips

Anything more than 12 items belongs in CI-triggered regression suite, not pre-merge smoke pass.

Tools that do this well

Three tools cover three zones between them. No single tool covers all three depths alone. The honest recommendation is a stack rather than a monolith.

Drizz

Drizz is a Vision AI mobile testing platform that reads rendered game screen and runs plain-English tests on real iOS and Android devices.

On HUD, menu, and shop specifically, Drizz is only widely-deployed platform that covers all three zones without engine SDK integration. Because it matches on visible layout  text, price tags, layout constraints, safe-area geometry  it works on Unity, Unreal, Cocos2d, and proprietary engines with same test source.

Storefront tests verify promotional prices, LTO timers, and bundle art across device matrix. Menu tests verify component consistency and modal z-order. HUD tests verify text-overflow, clipping, and rendering at multiple gameplay states.

Reported flakiness on production customer suites sits around 5%. Every run returns per-step screenshots and action logs, so a scanning QA engineer can attribute a regression to exact zone and screen where it appeared.

Suited to game studios shipping design updates weekly or biweekly on native or React Native or Flutter titles.

AltTester (Unity)

AltTester is industry-standard framework for looking inside a Unity build. It injects an SDK into an instrumented build and exposes GameObject hierarchy over a WebSocket connection, which lets automation frameworks query and interact with engine's scene graph.

For HUD and menu logic tests, this is deepest coverage available on Unity. If your test needs to verify that health bar's underlying integer value is decrementing correctly, AltTester reads that value directly.

The trade-off is that AltTester requires source-code access and an instrumented build. It cannot run on final release builds. Studios that ship a production APK and test that same APK need a rendering-based approach for release-candidate coverage.

Best fit for Unity studios with source-code access wanting deep engine-level state verification alongside a rendering-based tool for release-candidate coverage.

BrowserStack App Automate

BrowserStack App Automate is largest real-device cloud for mobile testing. On game surface, it plays a specific complementary role: device-matrix breadth for cross-resolution HUD verification.

The HUD zone is one most sensitive to physical device differences  notch shape, safe-area sizing, screen aspect ratio, refresh rate. Running same HUD test suite across 30-50 real devices catches class of bugs that only appear on specific hardware.

BrowserStack doesn't automate game canvas itself  it provides device layer. Pair it with a rendering-based automation tool (Drizz or a vision-based competitor) to get both device breadth and canvas coverage.

Best fit for studios whose HUD bugs concentrate on specific device configurations that emulators cannot reproduce.

Limitations of automated regression at these three zones

Automated regression at HUD, menu, and shop zones is genuinely powerful, but not unlimited.

• New menu screens still need human review. A test suite catches regressions on screens automation has seen before. First-of-a-kind screens on a new release always need a manual pass.
• Localisation churn produces false positives. A translation update that intentionally rewords a HUD label will trigger visual diffs. Baseline management for localised builds requires ongoing curation.
• Animation-timing bugs escape screenshot-based tests. A frame-timing regression during a menu-open animation shows up as a video-review problem, not a screenshot diff.
• Deep engine-state bugs need engine-level access. Verifying that health bar's underlying integer is correct requires AltTester (Unity) or Gauntlet (Unreal), not a rendering-based tool.

The automated suite catches pre-production and regression tier of visual bugs. The manual release-candidate pass stays in picture for animation, first-time-seen screens, and engine-state verification.

FAQ

What is biggest source of shipped UI bugs in mobile games?

Menu regression, by volume. A mid-sized mobile RPG has 40-60 menu screens; a design system update almost always ships in a subset and creates mismatched-styling regressions in rest. HUD bugs get more player attention but menu bugs happen more often.

Can Appium test a game shop?

Only parts of shop rendered as native views  usually just native payment sheet at Layer 2 of an IAP flow. The shop UI itself (tiles, prices, promotional banners) renders inside game's canvas and is invisible to Appium's accessibility-tree queries.

How often do HUD, menu, and shop zones actually break?

Per release cadence data across production suites: roughly 60-70% of shipped visual bugs live in one of these three zones. The rest are gameplay bugs (not visual), platform-integration bugs (payments, deep links, biometrics), and edge-case device bugs.

Can I test HUD regressions in an emulator?

Partially. Emulators cover most HUD content bugs (truncation, overflow, currency drift), but they miss device-shape bugs (notch, safe area, foldable) that only appear on real hardware. A hybrid emulator + real-device matrix is standard pattern.

Do I need AltTester if I'm using Drizz?

Depends on test coverage you need. Drizz covers rendering-based regression across all three zones on release builds without SDK integration. AltTester covers engine-state verification (integer values, GameObject properties) that Drizz cannot reach. Studios shipping a Unity title with strong engine-state test needs often run both.

‍
